22 b. Engine rubber mount variants

The hole pattern in the subframe, which has remained unchanged over the construction period, allows engine conversions, provided that the engine rubber mounts and engine arms are selected to match the engine. No hydromounts in type 107. Replacements of rubber bearings within a design result in slightly changed damping or height-per-load properties, as well as the differences between products. (Guideline: seat of the motor arm above support (HII) from Gen II approx. 46.5 +/-1.5 unloaded, with Gen I approx. 56.0). We look forward to receiving the most complete vehicle information possible when you make your enquiry. The height position of the engine can be easily evaluated by the fit of the fan blade in its frame, under normal load on the front axle: When sighted on the two-column lift, the engine sags slightly with the subframe, this also applies to the prop shaft alignment.
722012,722011,722010,722710,722711 722013,722913,722014,722813 722016,722019,722015,722116,722119,722715,722825,722823,722811
Show/hide mapping

Eng mount 350/450, L or R ca. '75-'80, not US75/76

Item number
722013
Stock
Product is on stock
Weight:
0.55 kg

Engine rubber mount 6-cyl frt L/R from ca. 06.'76

Item number
722715
Stock
Product is on stock
Weight:
0.55 kg

350SL/C bis 06.'74 vo. li+re 450SL/C bis 06.'74 nur rechts

Item number
722010
Stock
Product is on stock
Weight:
0.56 kg

Engine mount rear, slim style, FEBI, from 07.'72

Item number
722021
Stock
Product is on stock
Weight:
0.52 kg

Rbr frt 3.5 frm 06.74 L+R, 4.5 R only, Meyle

Item number
722913
Stock
Product is on stock
Weight:
0.55 kg

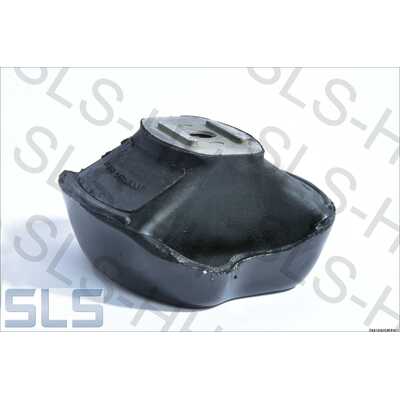

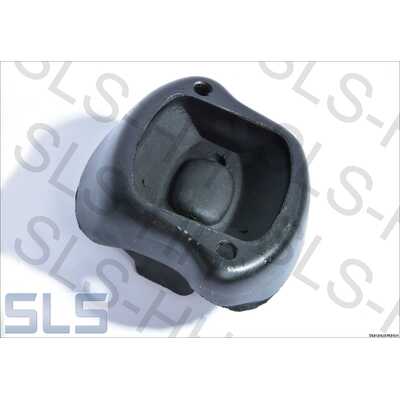

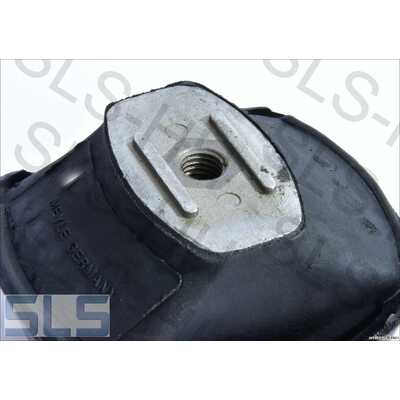

Engine bearing 280SL/C ca. up to 76

Item number
722012
Stock
Product is on stock
Weight:
0.56 kg
