25,26,27,29,30 Gearbox, Clutch, Automatic, Pedal

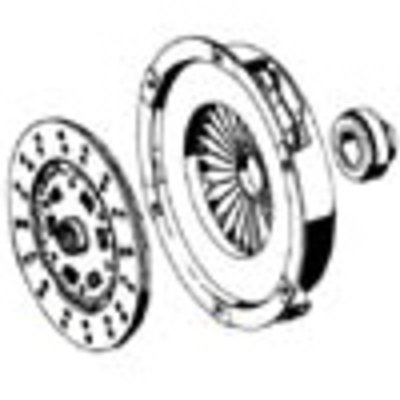

25 Clutch disk, if manual gearbox

25 Clutch disk, if manual gearbox

26.a 4-Speed manually, linkage&box

26.a 4-Speed manually, linkage&box

Picture plate related to 4-speed series (280/350), Overview of these and other series manual transmissions in the R/C107: 350SL/SLC 4-speed gearbox 716.100 = GL 76/27 A 280SL/C 4-speed 716.001 = GL 76/18 B, until August 1976 280SL/C 4-speed 716.006 = GL 76/18 D, Sept. 1976 to August 1981 280SL 5-speed 717.402 = GL 275 C, from September 1981 300SL 5-speed 717.431 = GL 76/27 B-5

27.a Automatic to 03.80: K4A, W4B, W3A, W3B

27.a Automatic to 03.80: K4A, W4B, W3A, W3B

The gearbox number is, for example, stamped at the edge of the base and/or can be found on a type plate; it usually starts with the aggregate type 722.xxxx. and the country version may be relevant. For spare parts inquiries, we ask you to provide this data. Your vehicle data card also shows the transmission number at the factory delivery.

27.b Automatic from 03.80: W4A 040

27.b Automatic from 03.80: W4A 040

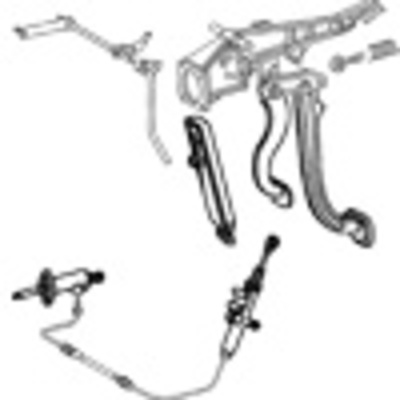

29 clutch hydraulic and pedals

29 clutch hydraulic and pedals

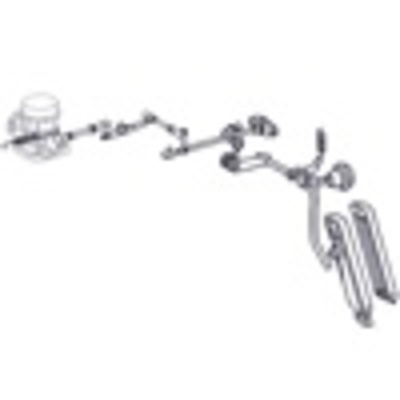

30 Linkage, accell pedal to throttle

30 Linkage, accell pedal to throttle

Very varied, confusing assembly: Drawing only for rough orientation, please open the tabular article display (list view with photos) in the browser below the drawing. In case of inquiries, please answer the cruise control question in addition to the VIN and engine number and/or send photos of the parts you are looking for.
