47 Gas Tank and Fuel Pump
47 Gas Tank and Fuel Pump

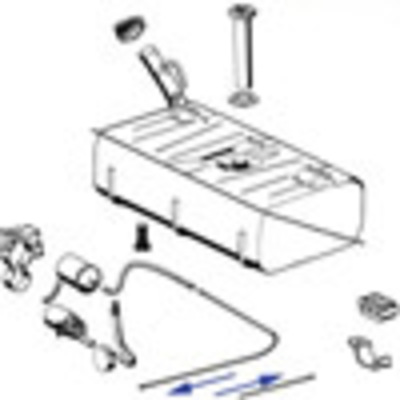

Tank: the body environment remained almost unchanged over the construction period, so that the choice of the right tank generation could be based on the available immersion tube sensor or upgraded to the latest generation with the help of the surrounding parts. Please plan for freight costs. Roadster and coupe tanks (and fuel gauges) are not interchangeable. The horizontal SL expansion tank was changed from sheet metal to plastic at an early stage, a rare first generation of tanks came with only one ventilation nozzle (later all tanks 5 nozzles). Meanwhile irrelevant: The filling pipe barrier against leaded nozzles as a catalytic converter retrofit additive is obsolete and the cross-section is basically tuned to lead-free in a simplified way. Locking lids for types without central locking can be requested with delivery of documents from MB with desired locking.

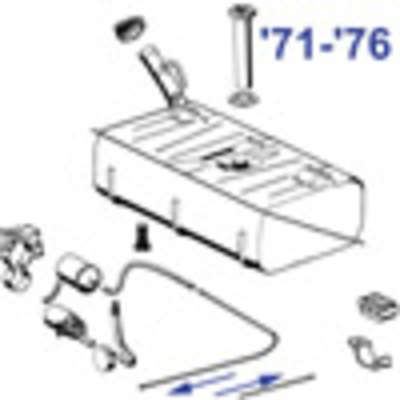

Pump package: this illustration is valid for types D-Jetronic, version without evaporation system, pump package without pressure accumulator, if original pump is installed, recognizable by the side pressure outlet. Due to the poor delivery situation, conversion to more modern pumps (inline design) is popular, so that assembly parts can differ individually, see illustration of more modern types. Use K-Jetronic 4.5 US already 09.'75.
Fuel gauges: fluctuating delivery situations and weaknesses in reproductions may suggest a request from professional overtakers. The design generation change was carried out without any influence on the electrical function, there is a sls-hh Youtube video for pin assignment and pre-fault encirclement.
Picture for the years of construction 1976 to 1985 (K-Jet with single pump): with numerous small changes, the pump environment was gradually developed: - after replacement of the D-Jetronic: installation of a pressure accumulator (behind the filter) - Use of in-line pump (replacement of the pump with transverse outlet) - Arrangement changed: accumulator turned and pipe connection parallel to the filter - Pressure compensation line with valve added, pressure side of the accumulator only one connection - Non-return valve on the pump pressure side (later included in the scope of delivery of all pumps) - Pressure compensation line with valve is omitted again - cross-section of the suction side enlarged, affects the pump, suction hose and suction damper (nozzle larger, housing diameter smaller), as a result, the connected hoses are also different. Pump holder and cover changed several times. All changes to the filter were environmentally compatible, the latest version fits all of them, but diameter adjustment before ordering is strongly recommended. When ordering the other components, the execution must be viewed beforehand. Hoses sold by the meter are supplied without a protective cover or insulation.
